Swivel Joint Type CF

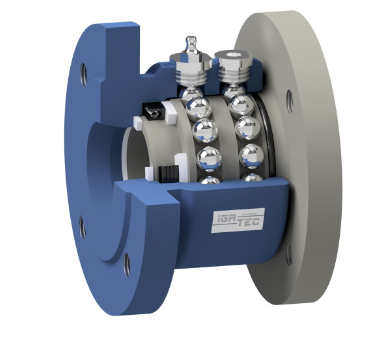

Swivel Joint Type CF Type CF is our standard intermediate flange joint and basically identical in construction to type W, except that the flanges are not welded on but turned on. This has advantages with regard to concentric running with large nominal diameters (>DN350), since the lack of welding does not create any heat-affected zones and therefore no distortion can occur.

Mã sản phẩm:
Swivel Joint Type CF
Giá:
Liên hệ
Lượt xem:
101

Liên hệ Gọi ngay: 0976609121

Thông tin sản phẩm
Bình luận

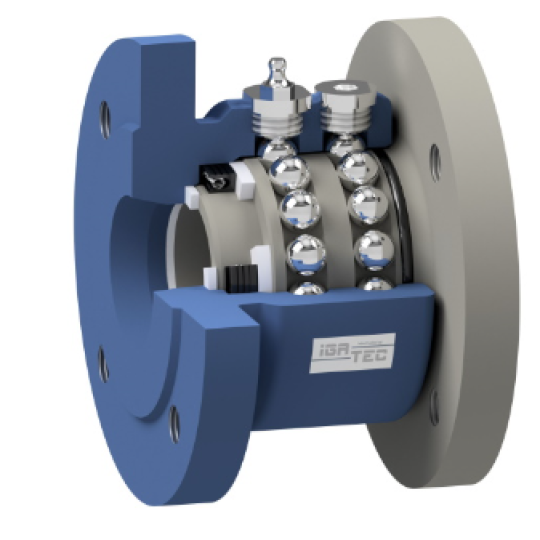

Swivel Joint Type CF

Type CF is our standard intermediate flange joint and basically identical in construction to type W, except that the flanges are not welded on but turned on. This has advantages with regard to concentric running with large nominal diameters (>DN350), since the lack of welding does not create any heat-affected zones and therefore no distortion can occur.

Nominal diameter:	1″ / DN25 to 40″ / DN1000
Working pressure P_max:	vacuum up to 6.000 psi / 420 bar *
Working temp. T_min/max:	-67°F to 482°F / -55°C to 250°C *
